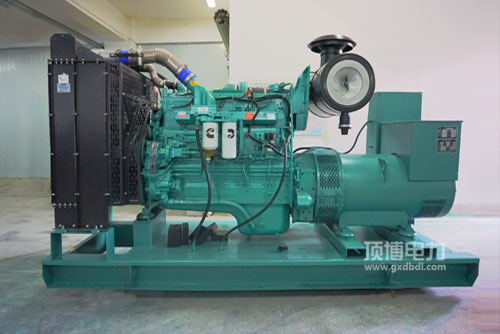

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用打火机然油划算性好: 领先的然油把握模式，具有的STC、ESTC 分级分类把握模式，异常设计的概念的连杆顶端助燃室，超高压喷射出然油，能够宽裕做雾化，助燃能够宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用汽车汽车发动因瞬态性能方面成绩突出: 完美无缺的汽车汽车发动因布局定制，配合康明斯个性的EFC系统性，调控高精准度更高，积极响应的时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用起主观因素升效率高: 纵向开发紧奏型.样貌流程适当，正常运行平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50符合国内非村道第三点的阶段及美洲Tier2. Tier 3污染物法律特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件必得性好， 打着机操作及保护清洁社区便利店，制造费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率空间 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观尺寸大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯并网发电用汽车发行为的共同点：重量小， 减少变高， 格栅板废气蒸汽加热，便于启动的，挪动汽车导航开关电源的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机主要参数	较为常用电率(kW)Prime Power	自备瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
